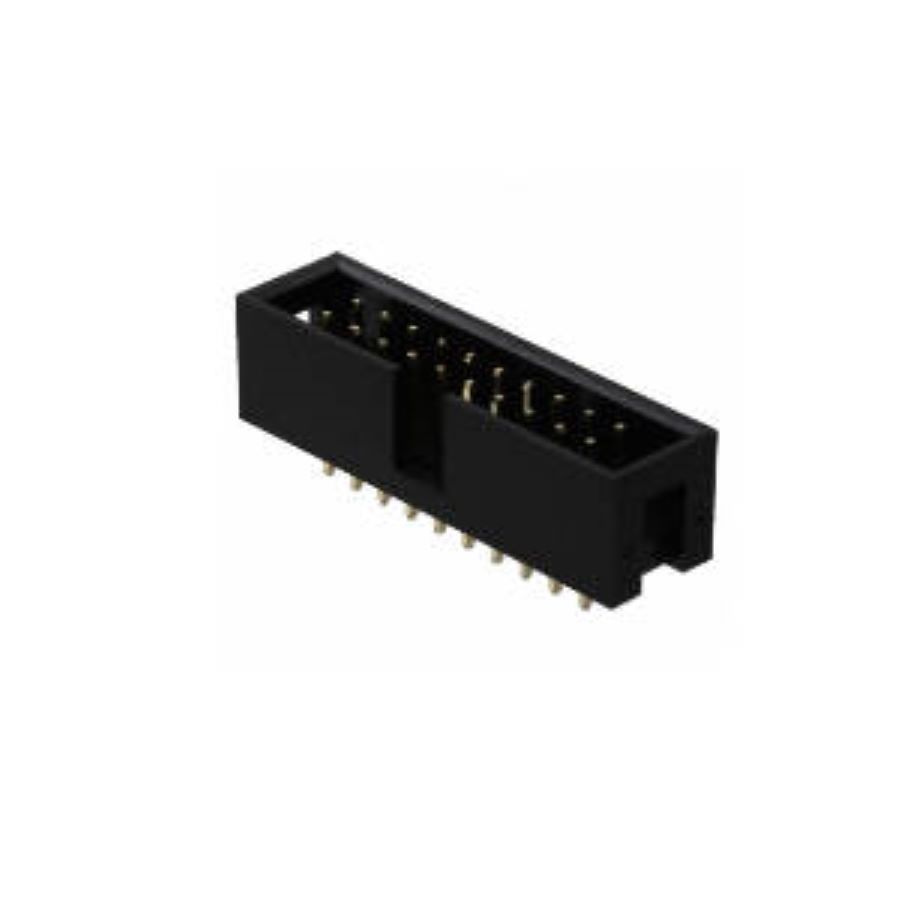

302-S201
Manufacturer:
On Shore Technology
Mfr.Part #:
302-S201
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Current Rating:3 A Voltage Rating:250 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 9.15 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Manufacturer Package Identifier | 302-S201 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Color | Black |
| Shielding | Shielded |
| Number of Contacts | 20 |
| Direction(Counting Sequence) | |
| Connector Type | Male Pin |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Schedule B | 8536694040 |
| Mounting Angle | Right Angle |
| Performance Category | Cat 5 |
| Accessory Type | |
| USOC Codes | RJ45 |
Stock: 31236
Distributors
pcbx
pcbxUnit Price$0.26934
Ext.Price$0.26934
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26934 | $0.26934 |
| 10 | $0.22962 | $2.29620 |
| 25 | $0.21751 | $5.43775 |
| 50 | $0.20604 | $10.30200 |
| 100 | $0.19517 | $19.51700 |
| 300 | $0.18488 | $55.46400 |
| 500 | $0.17513 | $87.56500 |
| 1000 | $0.16589 | $165.89000 |
| 3000 | $0.15714 | $471.42000 |
| 5000 | $0.14885 | $744.25000 |
| 10000 | $0.14101 | $1410.10000 |
